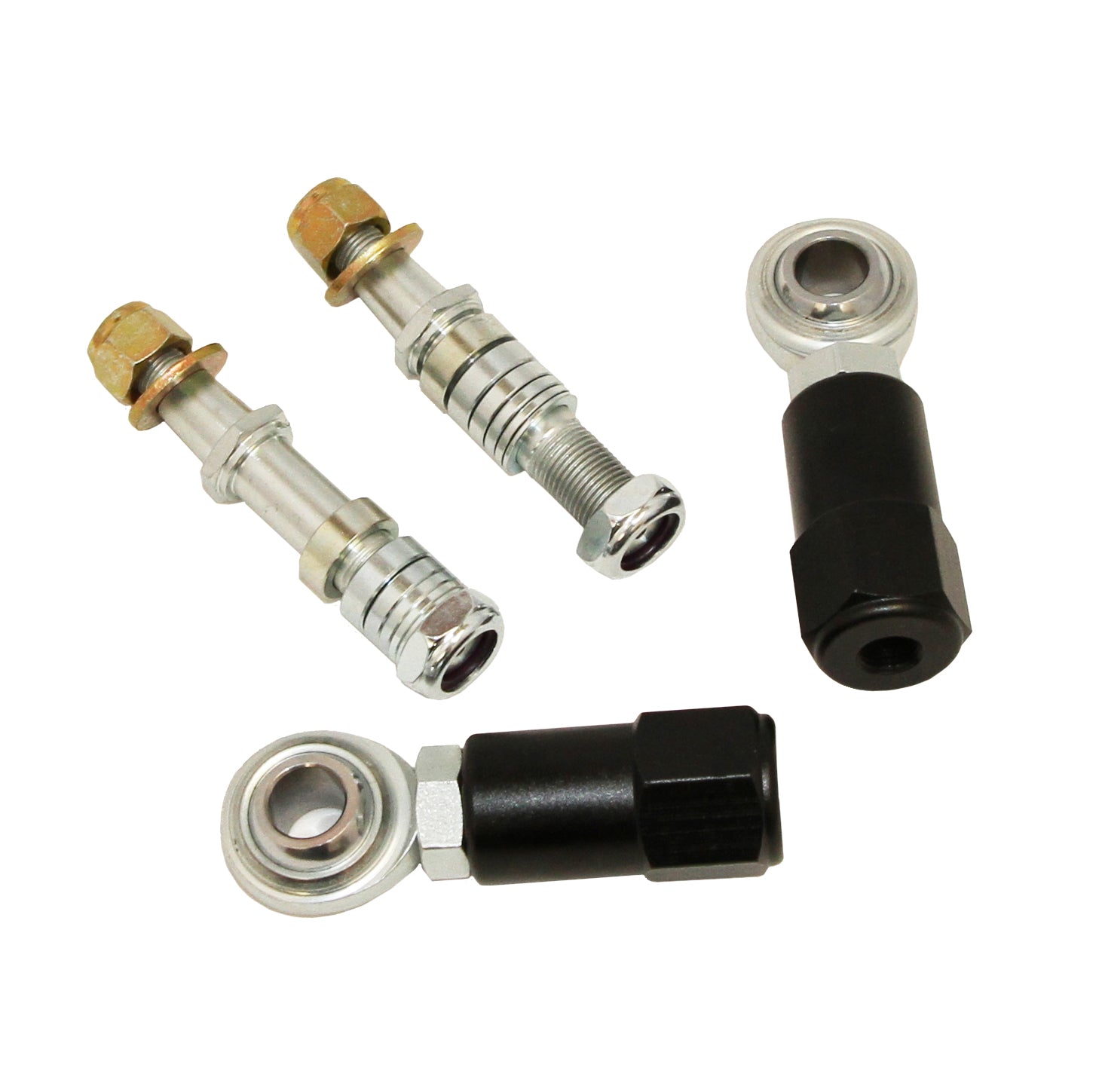

J&M Products 2005-2014 Ford Mustang S197 Adjustable Bump Steer Kit (Part #24512)

2005-2014 Ford Mustang S197 Adjustable Bump Steer Kit

Part # 24512 | Made in the USA by J&M Products

J&M manufactures this bump steer kit for the S197-chassis Mustang from Aerospace T6511-6011 aluminum. The spherical rod end bodies are heat-treated chrome-moly alloy steel, clear zinc plated, with a PTFE-lined 52100 steel ball (Rc 56 min), hard chrome plated, rated at a static radial load of 18,000 lbs. The tapered stud is machined from forged 4340 chrome-moly, heat-treated to grade-8 bolt tensile strength (150,000 psi, minimum Rockwell C-33), with threads rolled rather than cut after heat treating for maximum strength.

What is Bump Steer?

When a car is lowered or lifted, it needs to be realigned to avoid excessive tire wear, which changes tie rod length -- and that changes bump steer. Less toe change can make the car feel more "twitchy" in a turn; more toe change than stock makes the car feel twitchy on straight, bumpy roads while resisting turn-in. This kit corrects that geometry so your alignment stays predictable after lowering.

Key Features & Benefits

• Corrects bump steer, preventing uneven tire wear and unpredictable steering
• A necessary addition for lowered cars
• Correctly sized tapered pin -- no need to drill out the spindle or use a bushing for proper fit
• Easily adjustable via a center adjustment hex
• Mil-A-8625 Type II black anodized finish for corrosion resistance
• Replaces factory tie rod ends with spherical rod ends for precise steering control
• Sintered bronze, PTFE-impregnated rod end liner -- stronger than standard PTFE liners

Fitment

Fits: 2005-2014 Ford Mustang with power racks (does not work on manual racks).

Made in the USA.
