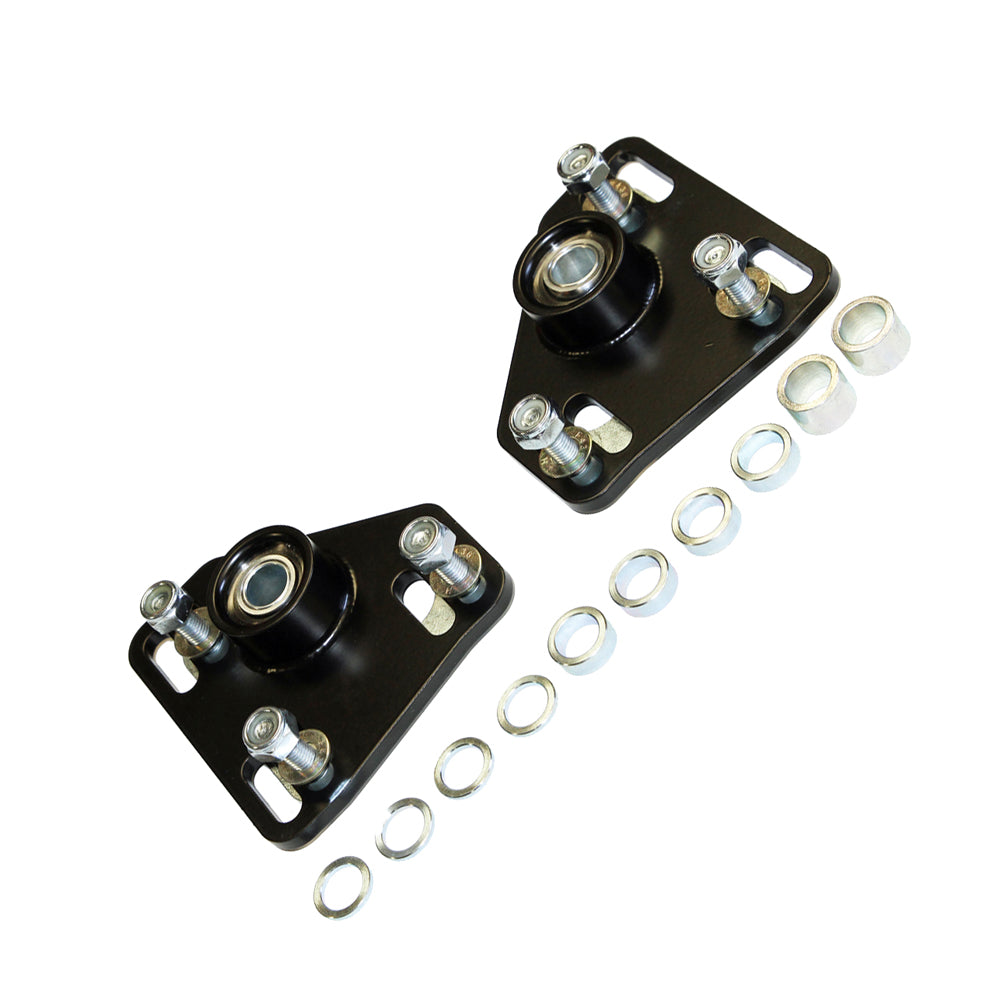

1994-2004 Ford Mustang 3 Bolt Alignment Caster Camber Plate (Part #24214)
Part # 24214-B
WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Fitment
Confirm your year, model, and package before ordering.
Fits: 1994–2004 Ford Mustang, all engines and body styles, including Cobra, Mach 1, and Bullitt.
Does not fit: 1979–1989 (use 24211); 1990–1993 (use 24212). Want the 4-bolt design and plate-bend warranty? Use 24213.
Confirm the model year before ordering.
Factory rubber strut mounts flex under load. A lowered 1994–2004 Mustang often runs out of factory camber adjustment range. These 3-bolt plates provide separate, independent caster and camber adjustment.
Part # 24214
Key Features & Benefits
- 3-bolt SN95 / New Edge design
- TIG-welded construction
- 1/4" Grade 50 high-strength load plates (not mild steel)
- Replaceable J&M-spec spherical bearing: 52100 ball, 4340 race, sintered bronze liner impregnated with PTFE — not the standard PTFE liner
- Independent caster and camber
- Bolt-in, no drilling
- Long, medium, and short strut spacers included
- Street and track
- Black or red powder coat
- Made in the USA
- Lifetime to the original owner on the bearing. Does not cover bent plates. Does not apply to race cars.
What’s in the box
- (2) camber plates
- (2) bottom plates
- Hardware (nuts and washers)
- (2) long, (2) medium, and (2) short strut spacers
- Bearing inserts
- Instructions
Frequently Asked Questions
4-bolt plate with warranty if a plate bends?
Use 24213 and install the 4th bolt.
Do I need an alignment after installation?
Yes. A professional alignment is required.
Shipping & returns
U.S. orders can be placed online. Canada and other international orders are handled by email at sales@hotpart.com. Full shipping & returns policy.
